Main technical parameters of PH3.91-16S indoor LED floor tile display
Physical point spacing 3.91㎜ Module board size 250X250㎜ Unit box size 500mm×500mm×70mm
Physical density 65536 dots/㎡ Light emitting point color 1R1G1B Unit board resolution 64*64=4096 DOTS
Module weight 0.55㎏

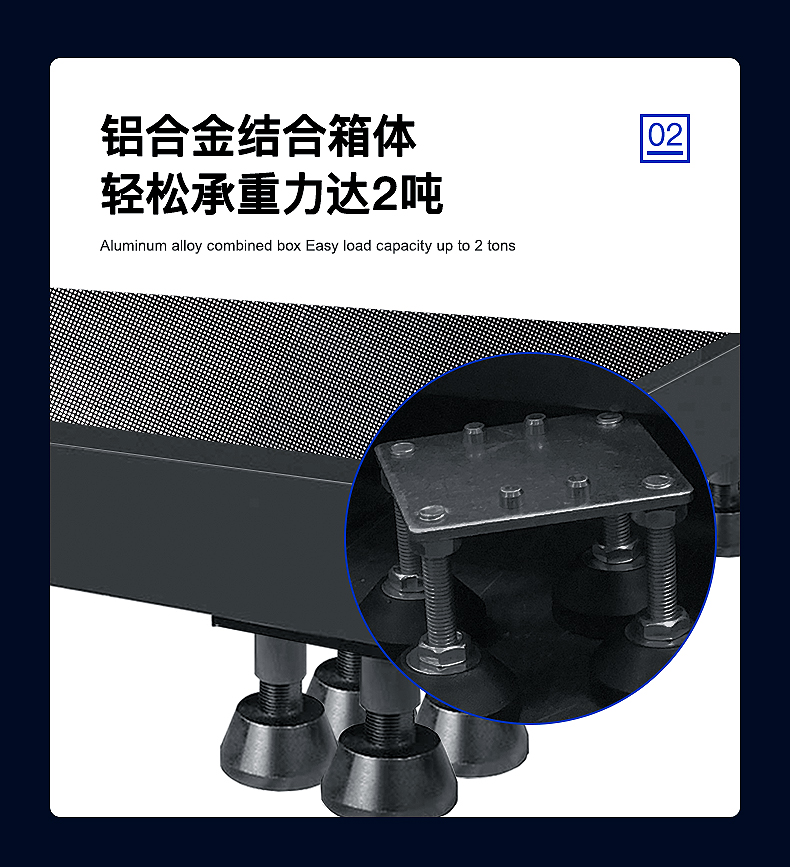

Box resolution 128*128 Box area 0.25m² Die-cast aluminum box weight 7.31KG±0.05KG
The main technical parameters
The best viewing distance is 3m～45m, the viewing angle is horizontal ≧160° optional, vertical ≥ 160° optional
Average power consumption＜400W/㎡ Maximum power consumption＜800w/㎡ Control method: synchronous control
Display card DVI graphics card Drive mode 1/16 scan Maximum power ≤40W
Refresh frequency≧1920Hz White balance brightness ≧1000cd/㎡ Frame changing frequency≧50/60
Brightness adjustment method Brightness sensor automatic adjustment 16 levels adjustable
Software manual adjustment: 100 levels adjustable 100
Computer operating system
WIN98, WINXP, WIN2000, etc
Video signal
RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc.
Control System
PCTV card (optional) + DVI graphics card + main control card + optical fiber transmission (optional)
Mean time between failures ≧5000 hours Life span 75000～100000 hours Pixel out of control rate ＜0.0002 pieces
Item Classification PH3.91-16S Package Type Three-in-one LED Package Type 2121
200套素材2吨承重防刮面罩高清晰三年质保
Shenzhen Delaisheng provides you with better quality LED floor tiles
About the floor tile screen, our advantage

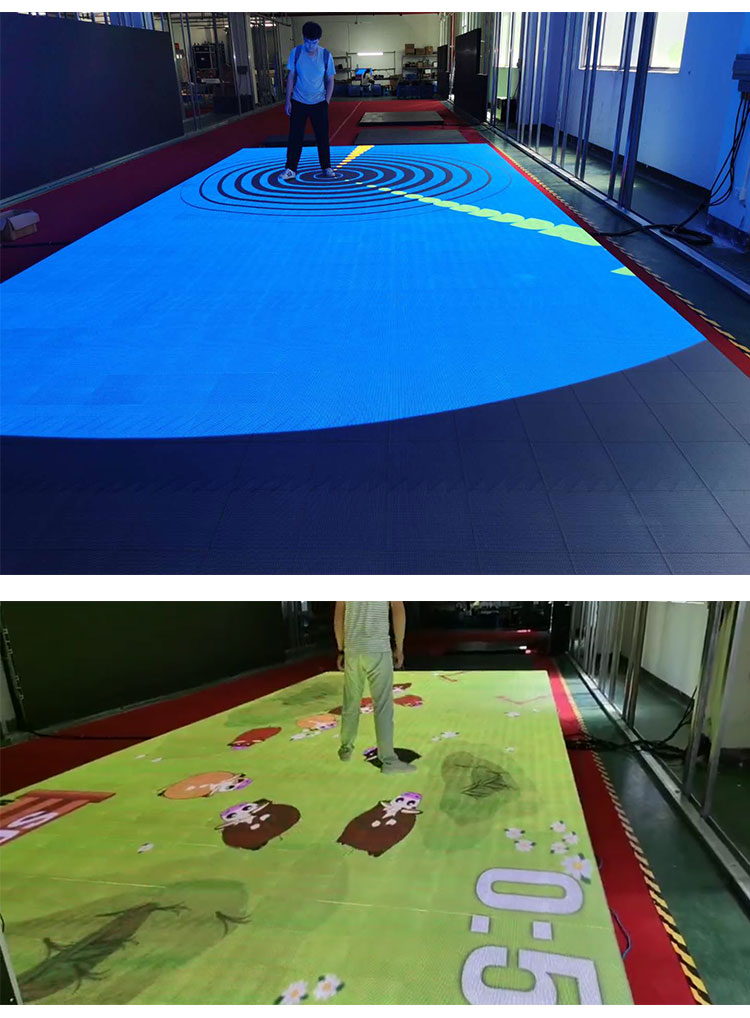

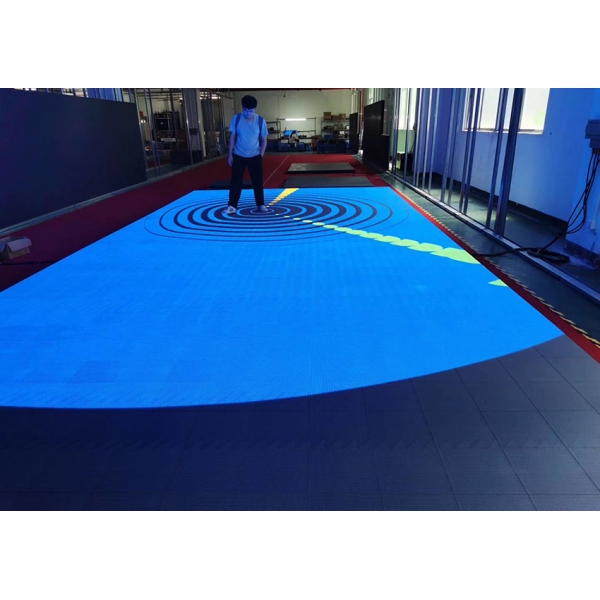

More than 200 interactive materials can be switched at will, including all influencer special effects to attract more popularity
