Creative customized special-shaped LED full-color display

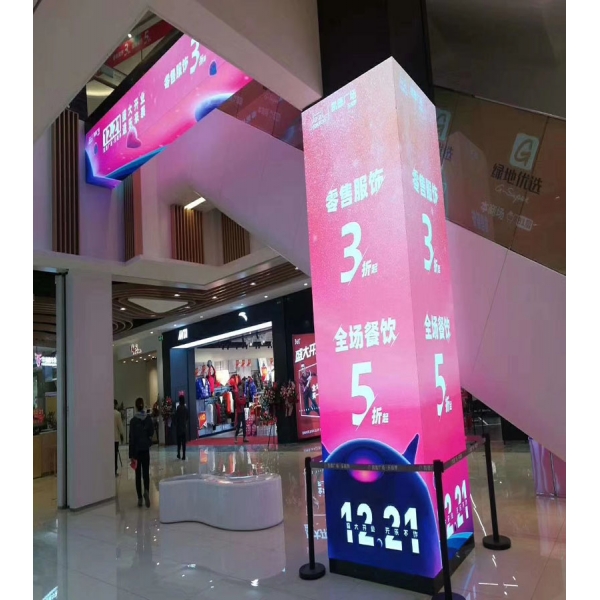

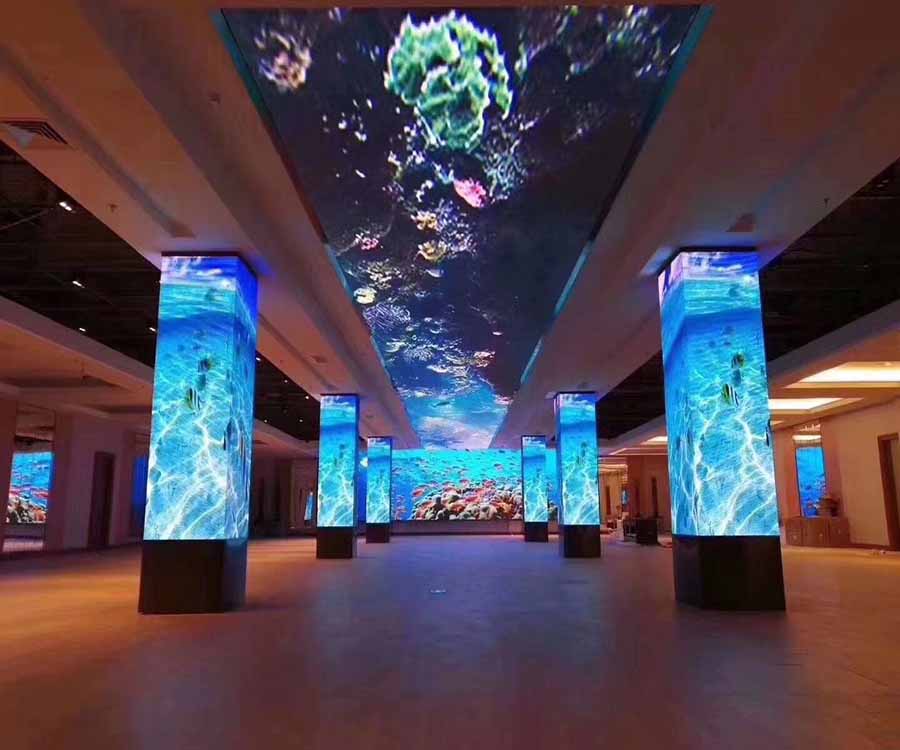

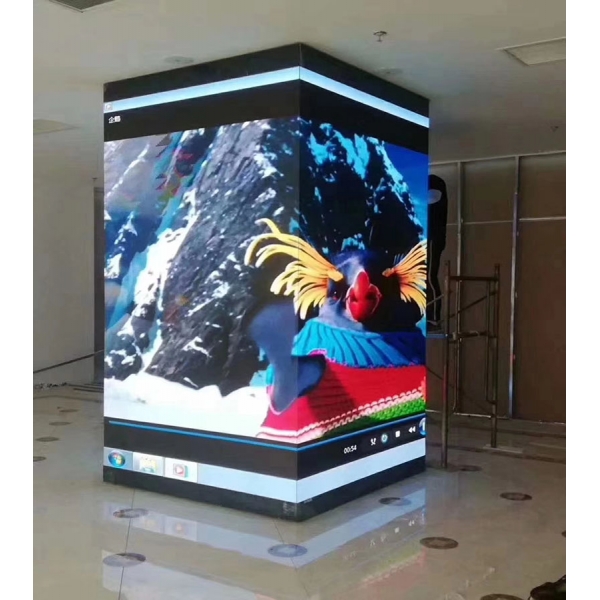

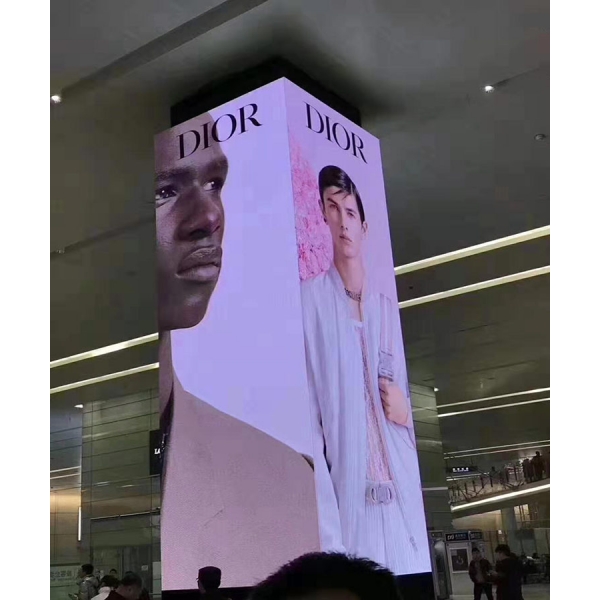

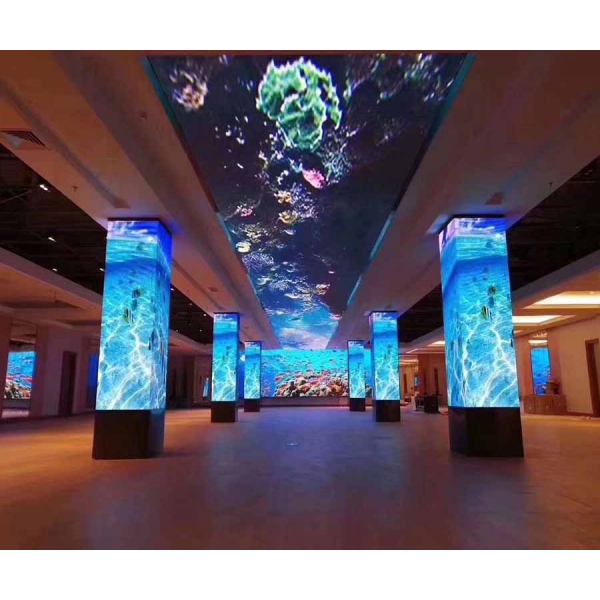

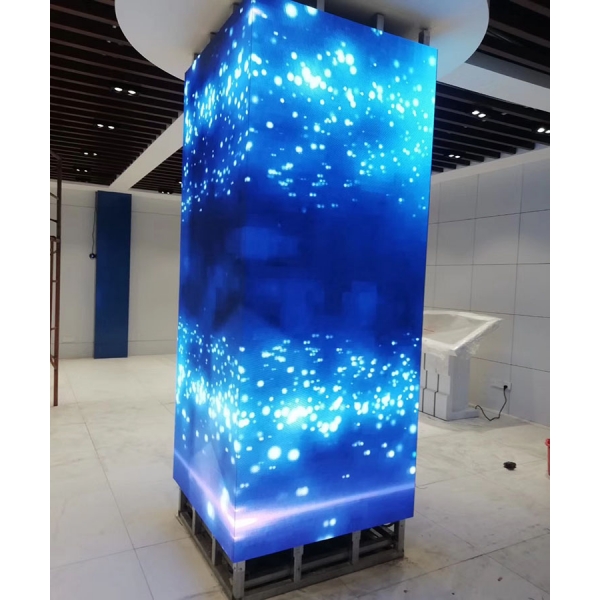

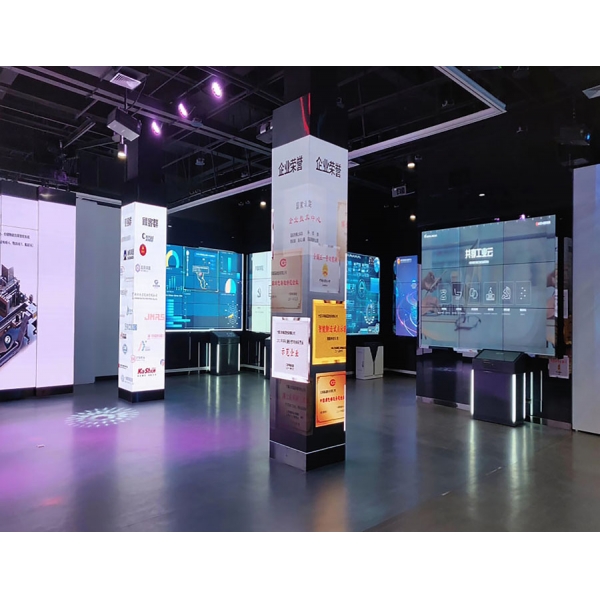

LED pillar screen

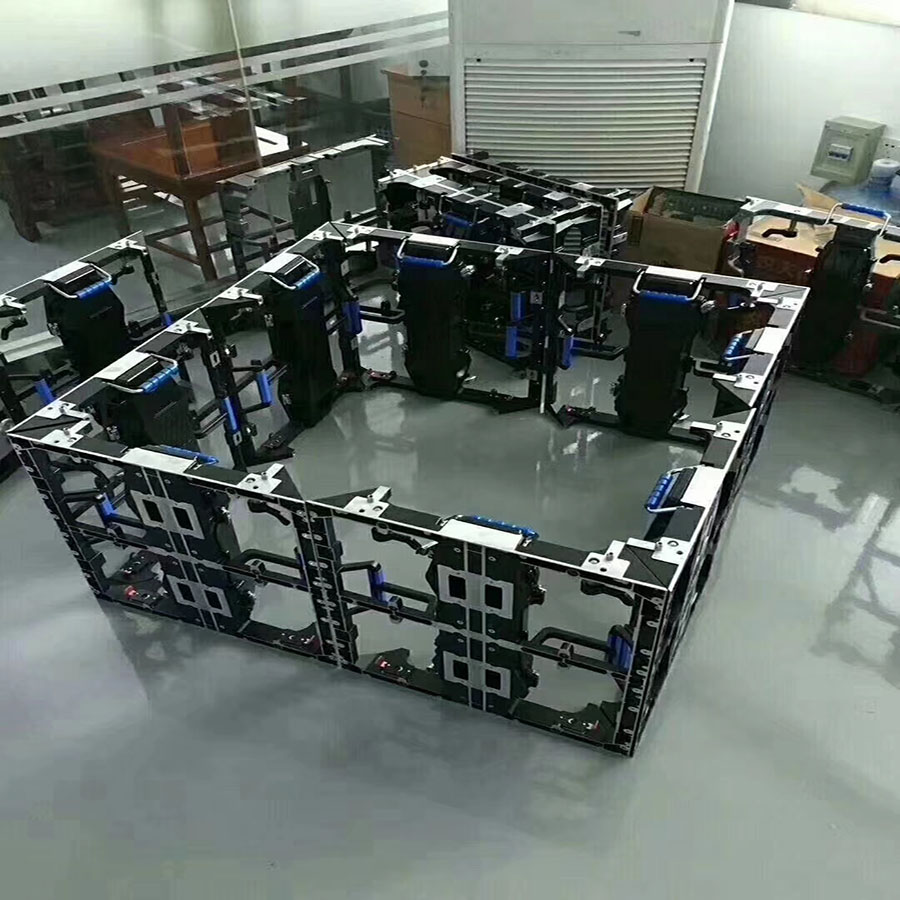

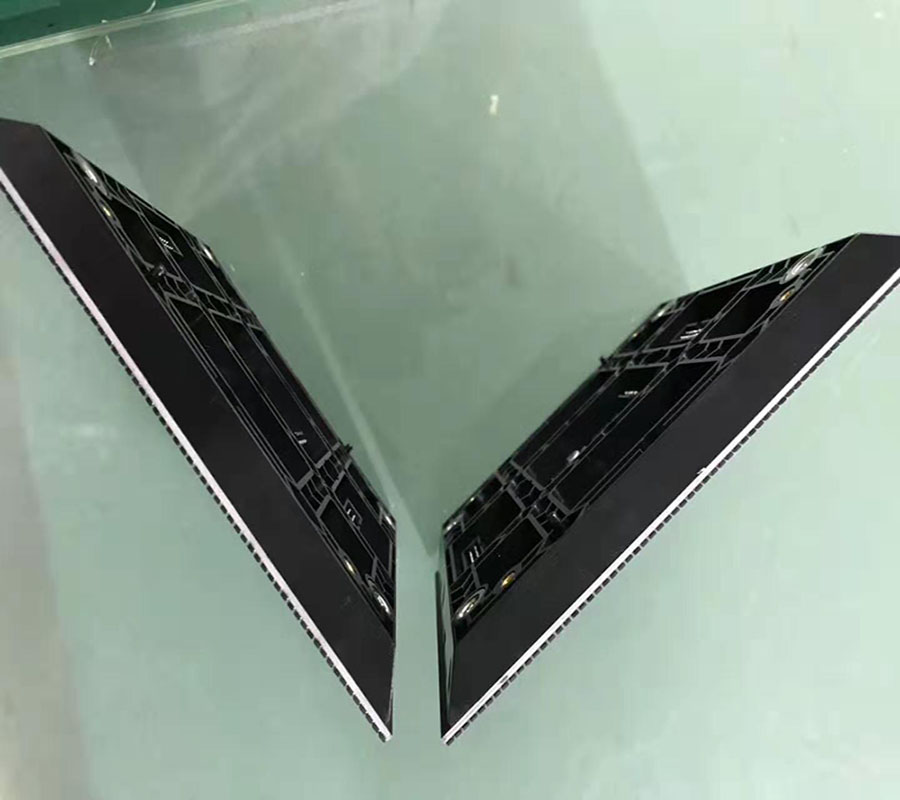

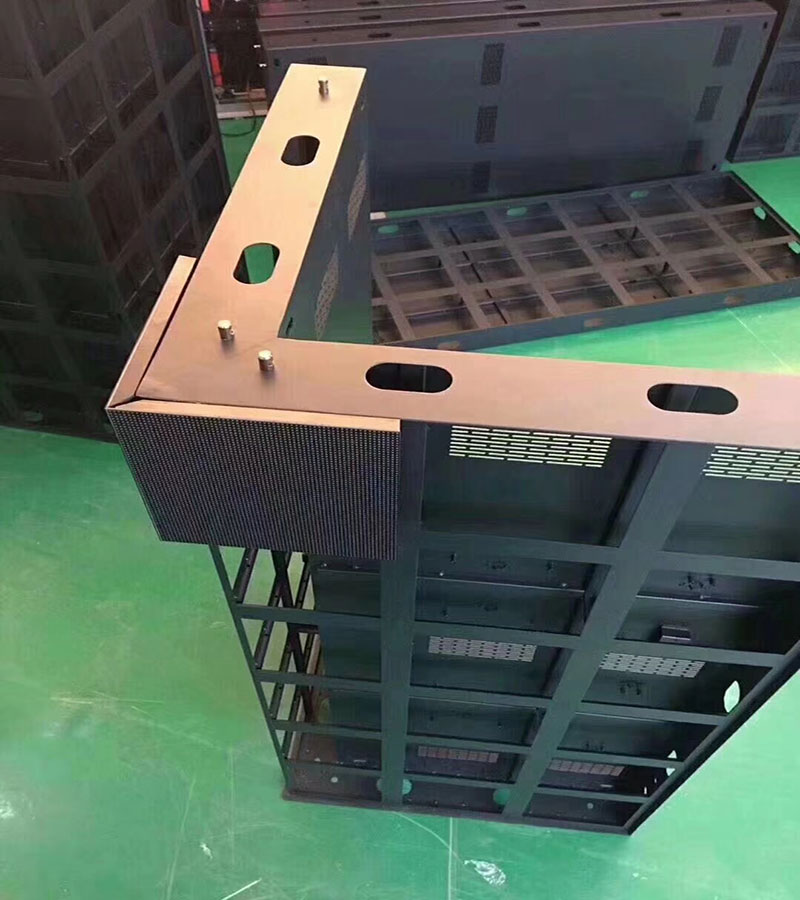

LED pillar screens are mainly installed on pillars. Both cylindrical and square pillars can be installed, breaking the conventional installation method.A seamless and perfect connection between the surface and the surface! Using the most advanced cabinet design technology and combining with the actual installation site environment, a new led display led by creativity has been created. The most attractive thing about this display is its unique shape and get rid of the senses of traditional flat display. Brings a new visual stereoscopic effectFeatures of pillar screen       1. Seamless splicing: 45-degree design can realize seamless splicing;2. Uniform pumping: support uniform pumping technology, and the display screen is not distorted; 3. Flexible control: compatible with asynchronous and asynchronous, supporting both offline and online modes; 4. Good heat dissipation: aluminum structural heat dissipation solution;5. Easy installation: As a complete system, it supports floor installation, hoisting, embedded installation, etc.;6. Convenient maintenance: support front maintenance;
    P5-16S室内LED圆柱屏主要技术参数
    物理点间距5
    单元板尺寸320X160
    产品尺寸φ732×1535mm
    物理密度40000/
    发光点颜色 1R1G1B
    单元板分辨率 64*32=2048 DOTS
    单元板重量 -
    主要技术参数
    最佳视距5m58m
    可视角度水平≧160°可选
    垂直≥160°可选
    平均功耗<350W/
    最大功耗<1000w/
    控制方式:同步控制
    显示卡 DVI显卡
    驱动方式 1/16扫描
    最大功率 ≤12W
    换帧频率≧360Hz
    白平衡亮度 800cd/
    刷新频率 500Hz
    亮度调节方式
    驱动ICICN2038
    16级可调
    软件手动调节:100级可调100
    计算机操作系统
    WIN98WINXPWIN2000,etc
    视屏信号
    RFS-VideoRGBRGBHVYUVYCCOMPOSITION
    控制系统
    PCTV卡(可选optional+DVI显卡+主控卡+光纤传输(可选optional
    平均无故障时间 5000小时
    寿命 75000100000小时
    像素失控率  0.0002
    项目分类 PH5-16S
    封装形式 三合一
    LED封装方式 2121
