Creative customized special-shaped LED full-color display

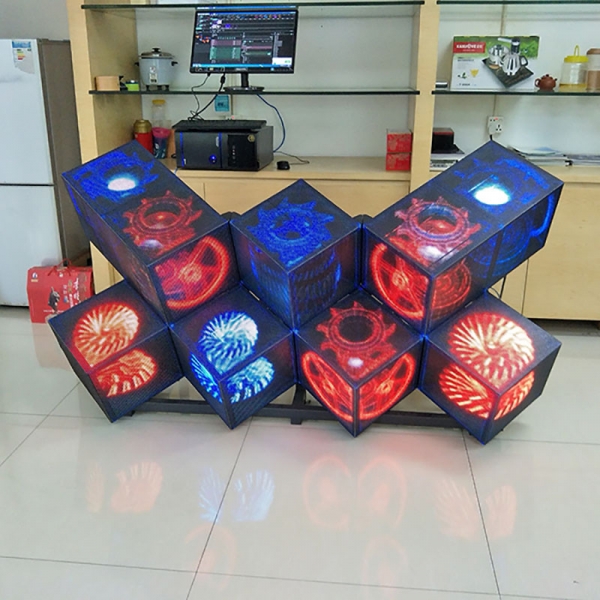

Led Rubik‘s cube display

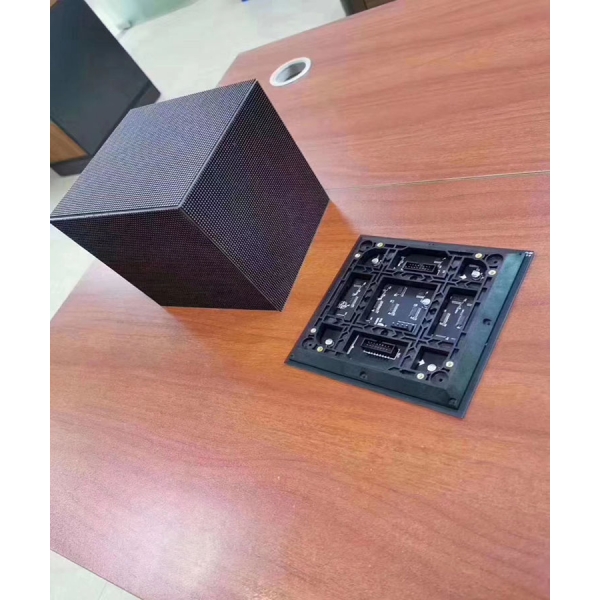

Main technical parameters of P5-16S indoor LED cube screenPhysical point spacing 5㎜ Module board size 160X160㎜ Product size 182×82×105 (mm)Physical density 40000 dots/㎡ Luminous point color 1R1G1B Cell board resolution 32*32=1024 DOTSModule weight- ㎏The main technical parameters The best viewing distance is 5m~58m, the viewing angle is horizontal ≧160° optional, vertical ≥ 160° optionalAverage power consumption<350W/㎡ Maximum power consumption<800w/㎡ Control method: synchronous controlDisplay card DVI graphics card Drive mode 1/16 scan Maximum power ≤12WFrame change frequency≧360Hz White balance brightness≧1000cd/㎡ Refresh frequency≧500HzBrightness adjustment method Driver IC: ICN2038 16 levels adjustableSoftware manual adjustment: 100 levels adjustable 100Computer operating systemWIN98, WINXP, WIN2000, etcVideo signalRF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc.Control System PCTV card (optional) + DVI graphics card + main control card + optical fiber transmission (optional)Mean time between failures ≧5000 hours Life span 75000~100000 hours Pixel out of control rate <0.0002Project classification PH5-16S package form Three-in-one LED package form 2121
    ★The Rubik’s Cube LED display can be used outdoors and indoors. It is translucent, has a large display pixel pitch, and has a certain decorative effect. It is used in large-screen display occasions. It is between ordinary conventional displays and lighting. An LED display application product
    ★The display unit has undergone special treatment and can be assembled with a variety of special-shaped screens such as 4-sided and 6-sided, with display effects that cannot be achieved by ordinary conventional displays;
    ★In order to ensure sufficient brightness of the pixels in the outdoor reality project, the front of the pixels are sealed with silica gel for waterproof treatment. The color of the silica gel can be matched with the color card according to the project requirements, so that it can be perfectly coordinated with the color of the exterior wall of the building;
    ★The pixel outlet is a silicone wire with excellent high and low temperature performance, with professional waterproof connectors, professionally designed and carefully built fully sealed waterproof structure. The protection level reaches IP67. It can adapt to various indoor and outdoor temperature and humidity environments. The working environment can reach -20 and +80 degrees Celsius, can work in rain;
    ★The Rubik‘s Cube LED display adopts a bar display unit, which has strong visual impact and high safety factor.
    ★The viewing angle of the Rubik’s Cube LED display is 360 degrees, which can play videos in all directions without the viewing angle problem of the flat LED display;
    ★Multiple pixels in series or parallel can realize full-color display and can play the video clearly, and the LED Rubik’s Cube can be synchronized Or asynchronously control to display full-color video,
    ★The Rubik‘s Cube LED display is equipped with a professional audio and video processing system, supports a variety of external signal access, and can realize live broadcast.
    ★The size of the LED cube can be designed and produced according to customer requirements, and the size of the module is accurate
    ★10mm LED, specially designed for mobile stage surface, is a highlight of the rental industry. The Rubik‘s Cube LED display does not need to be installed, it can be used when the goods arrive, no installation is required!Good, convenient front maintenance, good waterproof performance, good seismic performance, low cost of auxiliary installation frame, fanless and silent, etc.;
    ★Like a rental LED display, it has an all-aluminum structure design, light weight and strong structure. The installation method of the LED cube can be designed to be mobile, hoisted, and seated according to customer requirements;
    ★ According to customer requirements and site environment, tailor the most suitable Rubik‘s Cube LED display solution; Rubik‘s Cube LED display
