LED outdoor display

Outdoor full color LED display

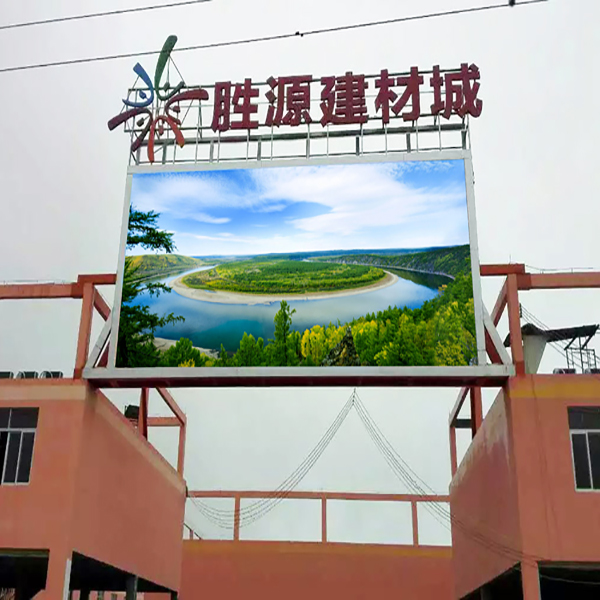

Outdoor advertising LED display application
1. In single or multiple commercial centers and areas with large traffic, the outdoor full-color LED large screen is built to form the outdoor large screen broadcast network covering the whole city and even the whole country. It is widely used in municipal square, financial service place, hotel, office building, public service place and other outdoor environment. 2. Large screen, strong visual impact, super clear map, huge shock force. All of them have a strong advertising charm, which is conducive to the shaping and dissemination of brand image. 3. Busy streets, small and medium-sized high-definition led full-color display screen or information screen are built to form a media release network. 4. Small screen, strong communication penetration, wide network coverage, direct access to consumer terminals, low investment, quick results, good publicity effect.
    P10-2S户外LED显示屏主要技术参数

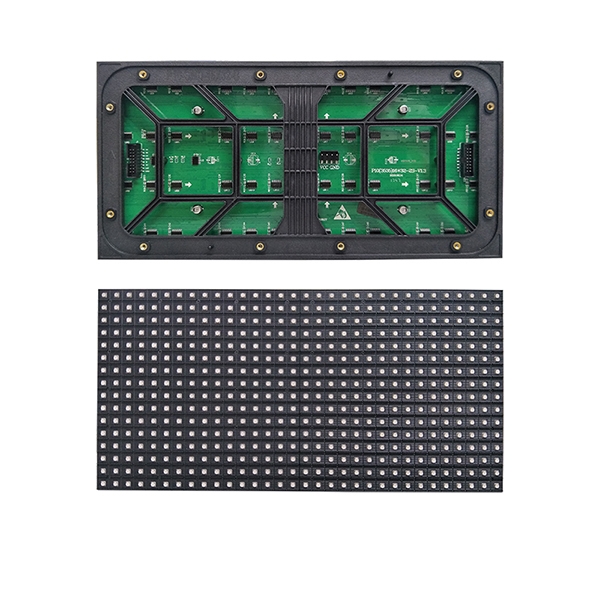

    物理点间距10㎜  单元板尺寸320X160㎜  单元箱体尺寸960×960(㎜)
    物理密度10000点/㎡ 发光点颜色 1R1G1B  单元板分辨率 32*16=512 DOTS
    单元板重量 0.43 kg
    箱体分辨率96*96 箱体面积0.9216m² 箱体重量20KG±0.05KG
    主要技术参数
    最佳视距10m~100m 可视角度水平≧160°可选 垂直≥160°可选
    平均功耗<800W/㎡ 最大功耗<1600w/㎡ 控制方式:同步控制
    显示卡 DVI显卡 驱动方式 1/2扫描 换幁频率 ≧60Hz
    刷新频率≧300Hz 白平衡亮度 ≧7500cd/㎡ 工作电压(交流)
    亮度调节方式 亮度感应自动调节 16级可调
    软件手动调节:100级可调100
    计算机操作系统
    WIN98、WINXP、WIN2000,etc
    视屏信号
    RF、S-Video、RGB、RGBHV、YUV、YC、COMPOSITION等
    控制系统
    PCTV卡(可选optional)+DVI显卡+主控卡+光纤传输(可选optional)
    平均无故障时间 ≧5000小时 寿命 75000~100000小时 像素失控率  <0.0002件
    项目分类 PH10-2S 封装形式 三合一 LED封装方式3535
