P16LED display price quotation material specifications and technical parameters

Brand: Delaisheng

P16 outdoor full color LED display

Pixel pitch: 16mm

Pixel density: 3906 dots/m

Lamp bead configuration: 1R1G1B

Similar to the lamp (optional) DIP vision (angle) 110° left and right, 50° up and down

Brightness: 8000cd/m

Drive mode: static

Gray level: 16384 levels

Refresh rate: 1800Hz

Frame change frequency: 60Hz

Brightness adjustment: automatic

Module size: 256mm*256mm

Module resolution: 16 points * 16 points

Working voltage: AC220/50Hz

Average power: 300W/m

Maximum power: 700W/m2

Maintenance method: post-maintenance

IP rating (front/rear): IP54/IP65

Operating temperature/humidity temperature 0℃50℃C humidity: 10-90%RH

Storage temperature/humidity temperature 40℃60℃ humidity 10-90%RH

00h working life (h)

P16 outdoor full-color LED display product features:

1. Outdoor full-color series of LED advertising screens, ultra-high pixel density, presenting a higher-definition picture effect

2. High cost performance: to meet your pursuit of high-definition pictures while also having a good price, which greatly reduces your investment cost;

3. Efficient and energy-saving: Adopting Delaisheng LED large screen products, ultra-bright LED driven by low power consumption, can save energy by more than 20%, with temperature control, display control, and brightness control technology, with PFC design

The circuit can achieve energy saving effect as a whole;

4. High protection level: unique cabinet design, in line with P protection standards, which can meet outdoor installation and use;

5. Standardized design: The cabinets, modules and other components are standardized design, and different products are compatible with each other to achieve standardization to the greatest extent, providing great convenience for production and subsequent maintenance

Profit

6. Large-scale production: implement large-scale production to improve production efficiency while greatly improving the consistency and reliability of product performance;

7. Cluster control: Multi-screen centralized control, remote management can easily achieve strategizing and win thousands of miles away;

8. High stability and reliability: carefully selected raw materials, scientific design schemes, and rigorous manufacturing processes ensure the high stability and reliability of the products, and bring long-term

interest.

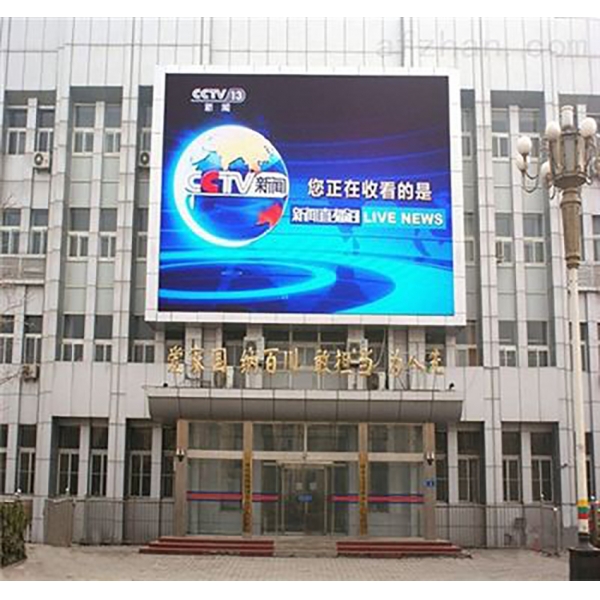

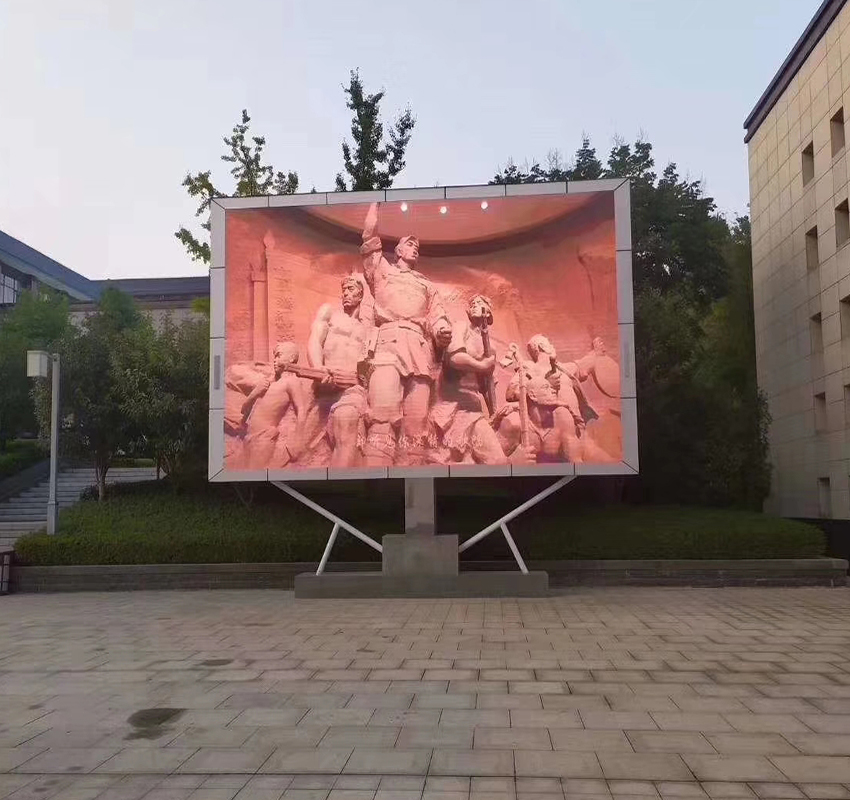

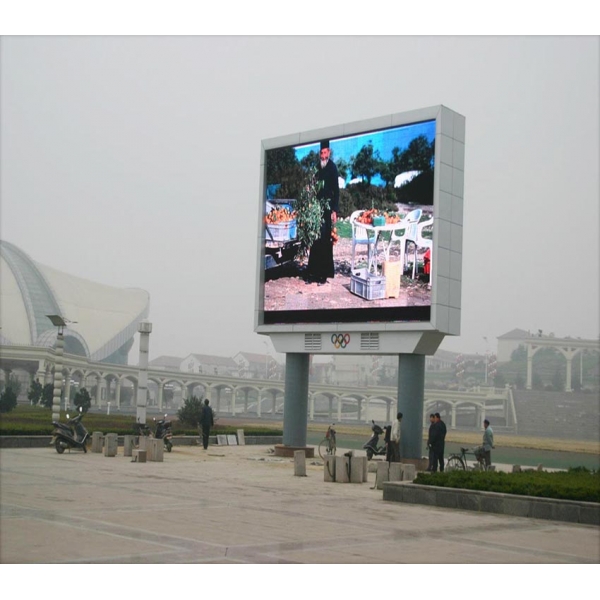

P16 full color outdoor LED display application range:

P16LED outdoor full-color display is widely used in large conference venues, squares, stadiums, government agencies, terminals, wharfs, stations, securities markets and other trading markets, electricity

Exhibition halls and many other places that require publicity, advertising, information release, and guidance.
