LED outdoor display

P3.91 outdoor display

P3.91
1. P3.91 full color display screen is controlled by common computer operating system and general playing software, which is easy to learn and understand, and can edit playing content and sequence at will, making system setting and operation very convenient. 2. P3.91 LED screen materials to finished products, the whole process of research and development to production controllability, which is the guarantee of product quality and reliability. 3. P3.91 indoor LED display screen has various shapes: it can be made into rectangle, Square, arc, Circular and other customized design modeling 4.p3.91 indoor LED display can support synchronous control card and asynchronous control card at the same time; even in case of control computer failure, it can still display and play normally 5. Installation of steel structure frame: indoor p3led full-color display is light steel frame, and chemical riveted steel plate is used as supporting structure in corresponding beam column part, showing The steel frame of the display panel is connected with the riveting fixed steel plate. 6. P3.91led display system works stably and reliably, has strong anti-interference ability, and works continuously for more than 72 hours. The control system software operation interface is humanized design and easy to operate. 7. P3.91led screen uses high-quality light-emitting components as the core material of the screen and adopts its own circuit board design, which fundamentally guarantees the service life of the product.
    P3.91-16S户外SLED显示屏主要技术参数

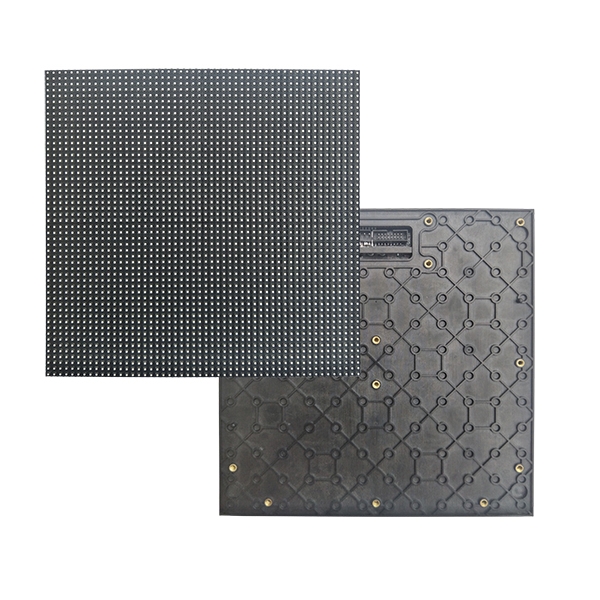

    物理点间距3.906㎜  单元板尺寸 250X250㎜  单元箱体尺寸500×500㎜
    物理密度65536点/㎡ 发光点颜色 1R1G1B 单元板分辨率 64*64=4096 DOTS
    单元板重量0.23㎏
    箱体分辨率128*128 箱体面积0.25m² 压铸铝箱体重量7.3KG±0.05KG
    主要技术参数
    最佳视距3m~60m 可视角度水平≧160°可选 垂直≥120°可选
    平均功耗<600W/㎡ 最大功耗<1200w/㎡ 控制方式:同步控制
    显示卡 DVI显卡 驱动方式 1/16扫描 最大功率 ≤36W
    刷新频率≧1920Hz 白平衡亮度 ≧3600cd/㎡ 换帧频率≧50/60
    亮度调节方式 亮度感应自动调节 16级可调
    软件手动调节:100级可调100
    计算机操作系统
    WIN98、WINXP、WIN2000,etc
    视屏信号
    RF、S-Video、RGB、RGBHV、YUV、YC、COMPOSITION等
    控制系统
    PCTV卡(可选optional)+DVI显卡+主控卡+光纤传输(可选optional)
    平均无故障时间 ≧5000小时 寿命 75000~100000小时 像素失控率  <0.0002件
    项目分类 PH3.906-16S 封装形式 三合一 LED封装方式 1921
    Please submit your basic information, we will contact you as soon as possible!

    *

    *

    *

    *
