Main technical parameters of outdoor P3-16S LED display

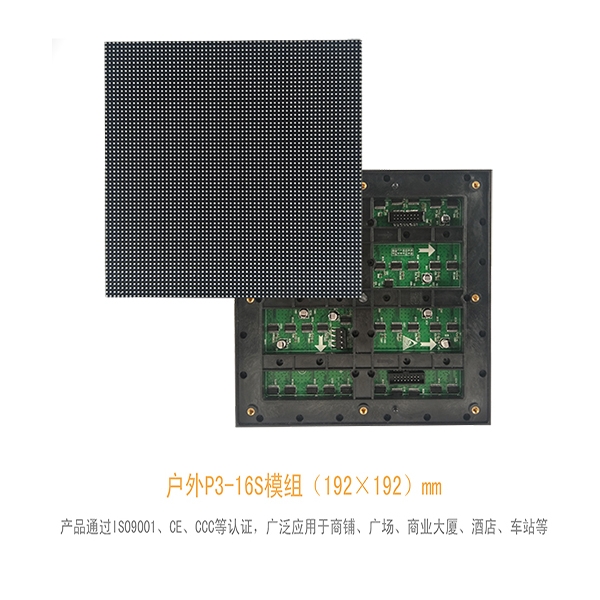

Main parameters of the module

Physical dot pitch 3㎜ physical density 111111 dots/㎡ Luminous dot color 1R1G1B

Module size 192X192㎜ Module resolution 64*64=4096 DOTS Module weight 0.37㎏

Drive IC: FM6126/MBI5124 Drive mode: 1/16 scan Maximum power consumption of the module <25W

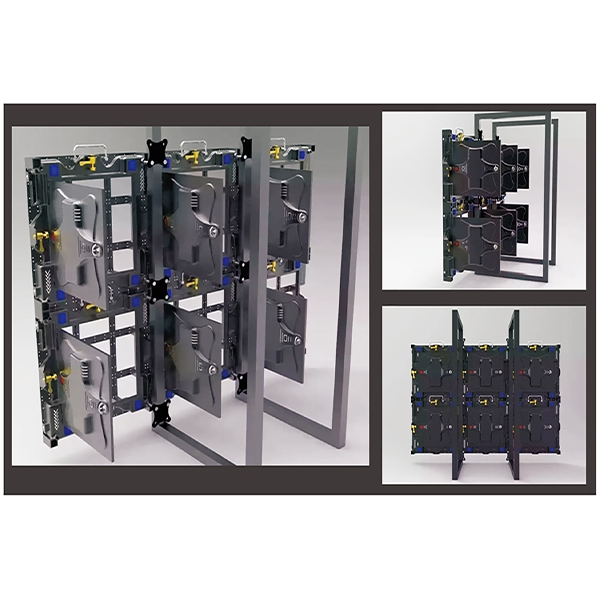

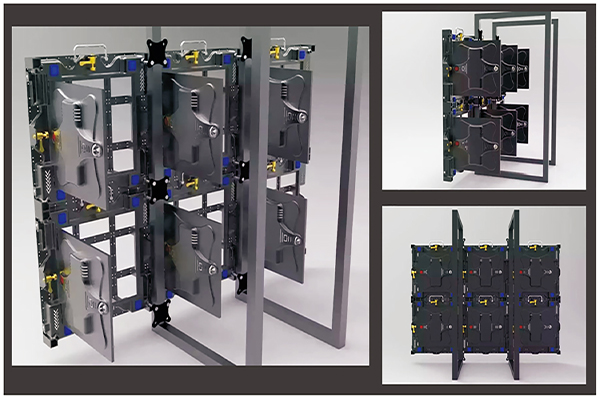

Main parameters of unit cabinet

Unit cabinet size 576×576㎜ cabinet resolution 192*192 cabinet area 0.332m²

Die-cast aluminum box weight 10.5KG±0.05KG

Main technical parameters of the display

The best viewing distance is 3m～60m, the viewing angle is optional horizontal ≧140°, vertical ≥120° optional

White balance brightness ≥4000cd/㎡ Maximum power consumption＜800W/㎡ Average power consumption＜350W/㎡

Working voltage (AC110/220V optional) Change frequency 50/60Hz Refresh frequency: 1000~1920HZ

System control method: synchronous control Display card: DVI graphics card

Brightness adjustment method

Brightness sensor automatic adjustment: 16 levels adjustable Software manual adjustment: 100 levels adjustable 100

Computer operating system

WIN98, WINXP, WIN2000, Win7/8, etc

Video signal

RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc.

Control System

PCTV card (optional) + DVI graphics card + main control card + optical fiber transmission (optional)

Mean time between failures ≧5000 hours Life: 75000～100000 hours Pixel out of control rate ＜0.0002 pieces

Item classification: PH3-16S Package: Three-in-one LED package: 1919

Features:

The P3 outdoor full-color display adopts a precision die-cast aluminum cabinet, which is perfectly seamless, and the design of the alignment groove + positioning pin is foolproof.

Good display effect: using constant current drive chip, the playback effect is bright and smooth;

Large viewing angle: Surface mount lamps are used, and the multi-directional viewing effect is consistent; scientific circuit: "ground effect" scheme circuit board layout design, effectively controlling the voltage peak;

Striped mask: The ink color of the product is darker, the contrast is better, and the color of the image is truly restored. Good flatness: the bottom shell with multi-reinforced rib structure has good flatness and is not easy to deform;

Drain hole design: Improve the protection ability and further guarantee the service life of the display screen. Double-layer protection: high-performance thermal conductive potting silica gel and three anti-paint protection, the product has stronger weather resistance;

Stable quality: complete, high-end, accurate laboratory and quality testing equipment and 135 process shutdown standards, strictly control product quality.

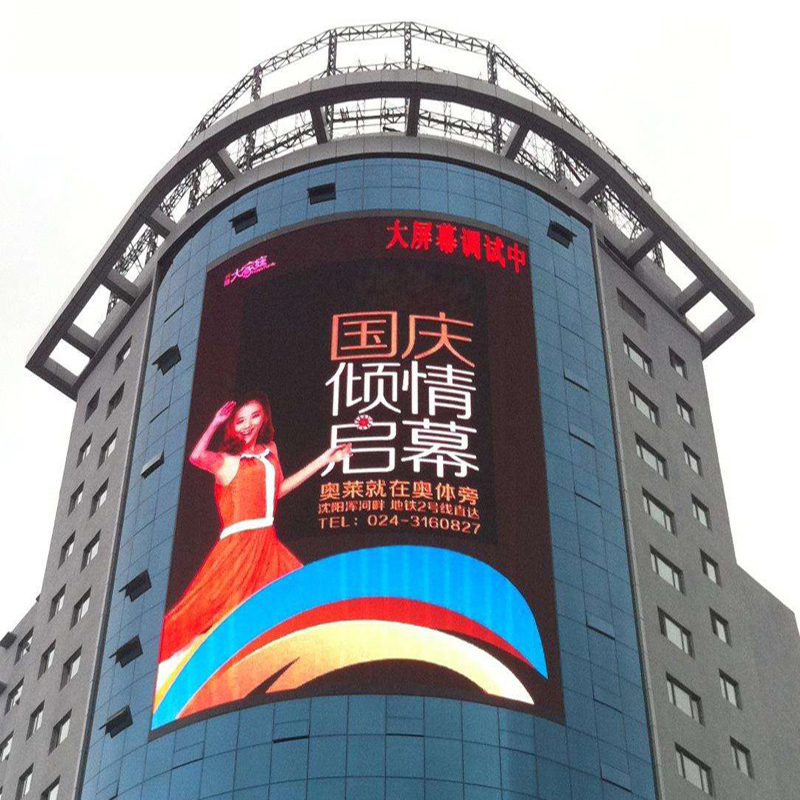

The LED curved display is assembled with LED soft boards, which can be spliced ​​at will to achieve the effect you want
