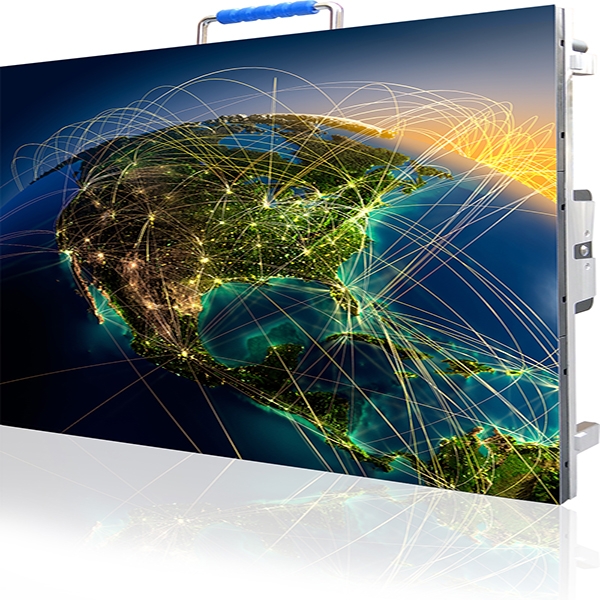

P1.875-32S main technical parameters of indoor LED display

Physical point spacing 1.875㎜ Module board size 240X240㎜ Unit cabinet size 480×480×75 (mm)

Physical density 284444 dots/㎡ Light-emitting point color 1R1G1B Unit board resolution 128*128=16384DOTS

Module weight-kg

Cabinet resolution 256*256 cabinet area 0.2304m² die-cast aluminum cabinet weight 6.7KG±0.05KG

The main technical parameters

The best viewing distance is 1m～28m, the viewing angle is optional horizontal ≧160°, vertical ≥140° optional

Average power consumption＜400W/㎡ Maximum power consumption＜800w/㎡ Control method: synchronous control

Graphics card DVI graphics card Drive mode 1/32 scan Change frequency ≧60Hz

Refresh frequency≧3840Hz White balance brightness ≧1000cd/㎡ Frame changing frequency≧50/60

Brightness adjustment method Driver IC: ICN2053/MBI5153 16 levels adjustable

Software manual adjustment: 100 levels adjustable 100

Computer operating system

WIN98, WINXP, WIN2000, etc

Video signal

RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc.

Control System

PCTV card (optional) + DVI graphics card + main control card + optical fiber transmission (optional)

Mean time between failures ≧5000 hours Life span 75000～100000 hours Pixel out of control rate ＜0.0002 pieces

Item Classification PH1.875 Package Type Three-in-one LED Package Type 1515

The P1.875 LED display product is a high-end product in the Delaisheng indoor high-definition small-pitch LED display series. It uses high-refresh IC, SMD LED, wide-format high-quality power supply with PFC function, die-cast aluminum box and other key materials. Dynamic scanning method The screen brightness can reach 800-2000nits, and it has the advantages of high density, high definition, high grayscale, high efficiency (energy saving), high contrast, high quality, unique appearance, safety, stability, reliability, and quick response.

The P1.875 display screen is made of light-emitting diodes as light-emitting display components. Together with the drive circuit and the data processing circuit, it forms a matrix display screen. Each light-emitting point contains 256 levels of red, green and blue, forming a 16 ,777216 colors, using SMD surface mount packaging technology, advanced and reasonable control methods, you can freely choose the display screen size, multi-screen partition playback, point by point correspondence with the computer monitor window, synchronous playback, and can receive TV, VCR, DVD, etc. Kind of video signal.

Features of P1.875 small-pitch LED display:

One: P1.8LED display low-brightness and high-gray technology, 500:1 contrast ratio, high gray level, 0-80 0nits adjustable brightness

Two: P1.8 display is ultra-light and thin, a display unit of 25g, the thickest is less than 4cm, the thinnest part is 1.5cm

Three: P1.8 LED display screen die-cast aluminum design, CNC finishing, can display the picture completely, realize seamless and unlimited splicing of any size, to meet the needs of different places

Four: It belongs to heat dissipation, ultra-quiet fanless design, more energy-saving

Five: P1.8 small-pitch LED display module front maintenance, cabinet front and rear dual maintenance, LED screen can be installed on the wall, no maintenance channel, faster installation

P1.875 small-pitch LED full-color display features:

One: P1.8LED display low brightness and high gray technology, 5000: contrast, high gray level, 0-80nits adjustable brightness

Two: P1.8 display is ultra-light and thin, one display unit is 2.5K, the thickest is less than 4cm, and the thinnest is 1.5cm

Three: P1.8 LED display screen die-cast aluminum design, CNC finishing, complete display screen, realize seamless and unlimited splicing of any size, to meet the needs of different places

Four: It belongs to heat dissipation, ultra-quiet fanless design, more energy-saving.

Five: P1.8 small-pitch LED display module front maintenance, front and rear maintenance of the cabinet, the LED screen can be installed on the wall, no maintenance channel is required, and the installation is faster.

Advantages of P1.875 full-color LED display:

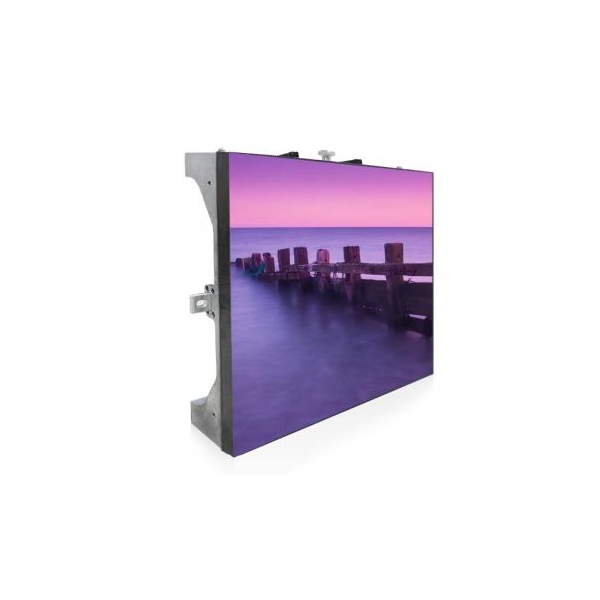

Strong structure

P1.8 full-color LED display box is 84mm thick and weighs 10kg

The box has a unique four-corner positioning pin,

The iron cast four corners are hollowed out with inner beveled edges.

Strong capacity,

It can stack up to 15 boxes, reaching more than 5 meters.

Golden ratio display area

The P1.8 LED display box can achieve standard resolution,

Reaching the golden ratio 16:9 is not a problem,

P1.8 full-color LED display can be easily spliced ​​into 2K (1920*1080)

4K (38402160), 8K (7680*4320) and other standard resolutions,

Easily create the most suitable view for human eyes

Good heat dissipation

The indoor P1.8 display uses high-efficiency energy-saving LED wicks,

Low energy consumption, low heat generation and long life.

Super silent fanless design,

P1.8 full-color display runs without noise, and the back cover has heat dissipation holes.

Front maintenance design

P1.8 LED display is optional for front and rear maintenance, which is convenient and fast

It only takes 4 steps and 10 seconds to replace a module.

This is due to the unique design of Chuangsite,

The indoor P1.8 full-color LED display does not require tools, and the module can be easily removed.

Low brightness and high gray technology

P1.8 full-color display excellent low brightness and high gray technology,

Even in extremely low brightness environments

The picture performance is still delicate and bright.

There is also single-point correction technology,

The P1.8 display can restore natural colors and avoid visual fatigue.

P1.875 display application scope:

Indoor P1.8 display screens are used for indoor information release, video conference, and advertising information in schools, hospitals, stations, large airport shopping malls, commercial buildings, government agencies, military headquarters, exhibitions and other places

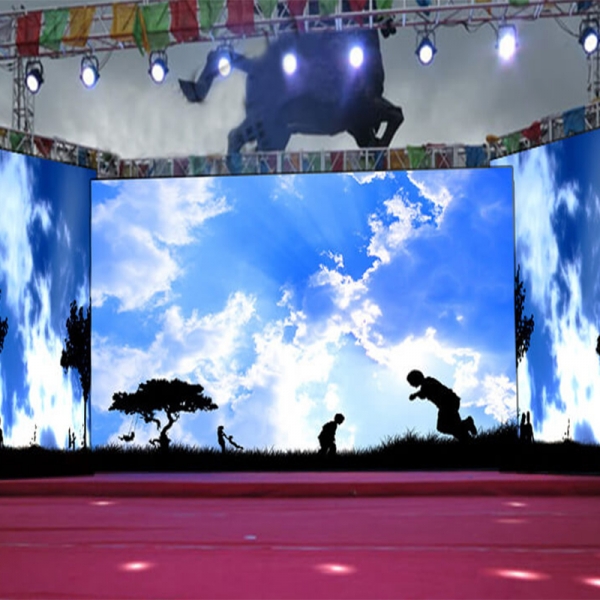

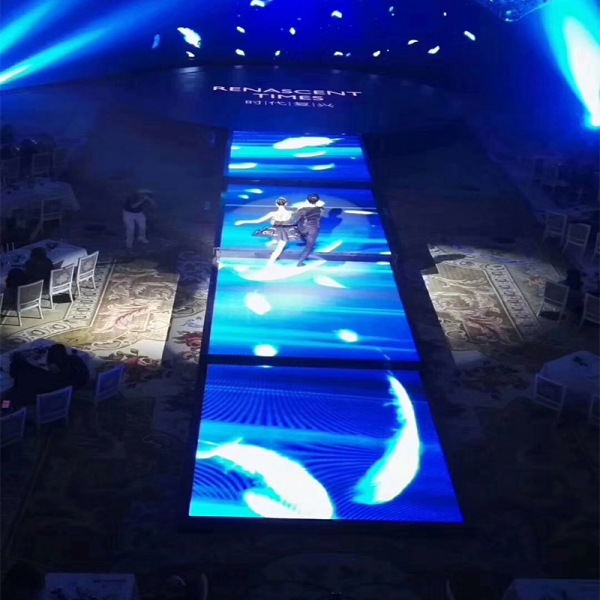

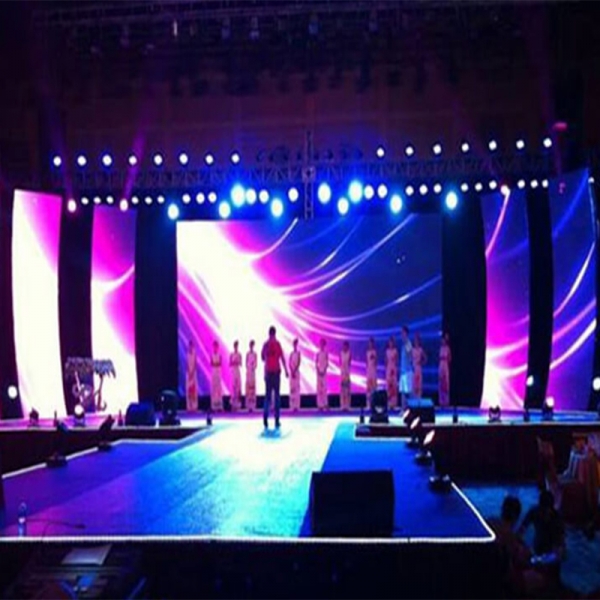

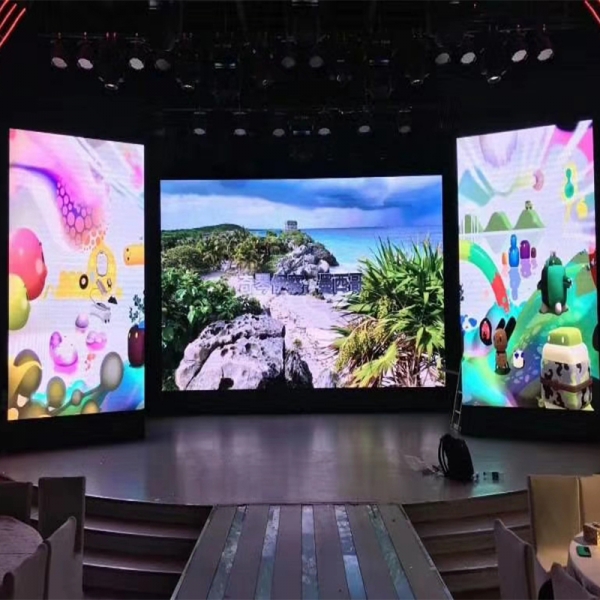

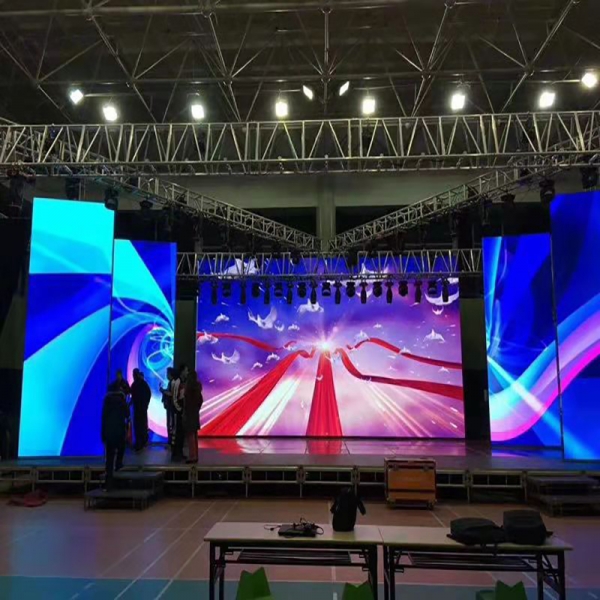

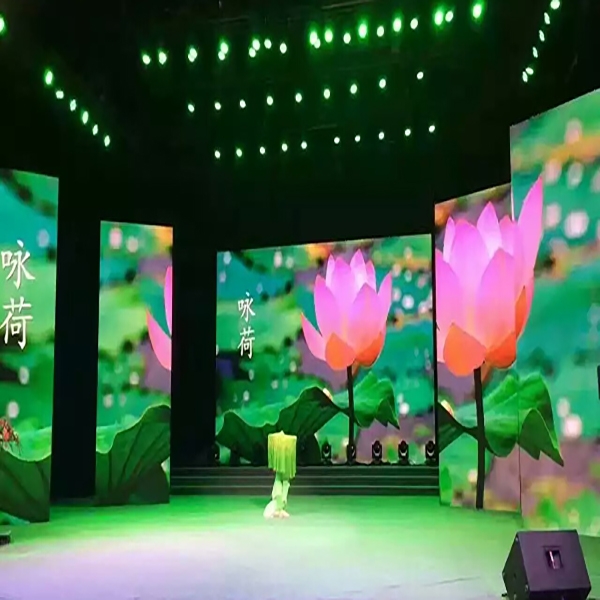

The video media equipment of the company also shines in stages, cinemas, studios, bars, KTV nightclubs and other places
