Main technical parameters of P1.25-64S indoor LED display

Physical point spacing 1.25 (mm) Unit board size 320*160 (mm) Unit cabinet size 640×480×70 (mm)

Physical density 640,000 dots/㎡ Light-emitting point color 1R1G1B Unit board resolution 256*128=32768(DOTS)

Module weight 0.18 kg

Cabinet resolution 512*384, cabinet area 0.3072m², die-cast aluminum cabinet weight 7KG±0.05KG

The main technical parameters

The best viewing distance is 1.2m～15m, the viewing angle is optional horizontal ≧160°, vertical ≥140° optional

Average power consumption＜350W/㎡ Maximum power consumption＜700w/㎡ Control method: synchronous control

Display card DVI graphics card Drive mode 1/64 scan Maximum power ≤30W

Refresh frequency≧3840Hz White balance brightness ≧700cd/㎡ Frame changing frequency≧50/60

Brightness adjustment method Driver IC: ICN2163/ICN2065 16-level adjustable

Software manual adjustment: 100 levels adjustable 100

Computer operating system

WIN98, WINXP, WIN2000, etc

Video signal

RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc.

Control System

PCTV card (optional) + DVI graphics card + main control card + optical fiber transmission (optional)

Mean time between failures ≧5000 hours Life span 75000～100000 hours Pixel out of control rate ＜0.0002 pieces

Item Classification PH1.25 Package Type Three-in-one LED Package Type 1010

Main technical parameters of P1.25-30S indoor LED display

Physical point spacing 1.25㎜ Module board size 200X150㎜ Unit cabinet size 400×300㎜

Physical density 640,000 dots/㎡ Light-emitting point color 1R1G1B Unit board resolution 160*120=19200 DOTS

Module weight 0.2㎏

Cabinet resolution 320*240, cabinet area 0.12m², die-cast aluminum cabinet weight 5KG±0.1KG

The main technical parameters

The best viewing distance is 1.2m～15m, the viewing angle is horizontal ≧160° optional, vertical ≥ 140° optional

Average power consumption＜600W/㎡ Maximum power consumption＜1200w/㎡ Control method: synchronous control

Graphics card DVI graphics card Drive mode 1/30 scan, conversion frequency 60Hz

Refresh frequency≧3840Hz White balance brightness 700cd/㎡ Working voltage (AC)

Brightness adjustment method Brightness sensor automatic adjustment 16 levels adjustable

Software manual adjustment: 100 levels adjustable 100

Computer operating system

WIN98, WINXP, WIN2000, etc

Video signal

RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc.

Control System

PC TV card (optional) + DVI graphics card + main control card + optical fiber transmission (optional)

Mean time between failures ≧5000 hours Life span 75000～100000 hours Pixel out of control rate ＜0.0002 pieces

Item Classification PH1.25-30S Package Type Three-in-one LED Package Type 1010

Main technical parameters of P1.25-45S indoor LED display

Physical point spacing 1.25mm module board size 300X168.75mm unit box size 600×337.5mm

Physical density 640000 dots/m² Light emitting point color 1R1G1B Unit board resolution 240*135=32400 DOTS

Module weight 0.4KG

Cabinet resolution 480*270, cabinet area 0.2025m², die-cast aluminum cabinet weight 6.5KG±0.1KG

The main technical parameters

The best viewing distance is 1.2m～15m, the viewing angle is optional horizontal ≧160°, vertical ≥140° optional

Average power consumption＜400W/m² Maximum power consumption＜800w/m² Control method: synchronous control

Graphics card DVI graphics card Drive mode 1/45 scan, conversion frequency 60Hz

Refresh frequency≧2880Hz White balance brightness 700cd/m² Working voltage (AC)

Brightness adjustment method Driver IC: ICN2163/ICN2065 16 levels adjustable

Software manual adjustment: 100 levels adjustable 100

Computer operating system

WIN98, WINXP, WIN2000, etc

Video signal

RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc.

Control System

PC TV card (optional) + DVI graphics card + main control card + optical fiber transmission (optional)

Mean time between failures ≧5000 hours Life span 75000～100000 hours Pixel out of control rate ＜0.0002 pieces

Item Classification PH1.25 Package Type Three-in-one LED Package Type 1010

P1.25 LED display has no joints, ultra-wide viewing angle, uniform brightness and chromaticity, no color cast, soft picture quality, long-term viewing without fatigue, ultra-high refresh display, fast frame changing speed, eliminating ghosting

No tailing, front maintenance, maintenance is more convenient, installation is more space-saving, 16bit grayscale processing, excessive color is more natural

The P1.25 small-pitch LED display is a high-end product in the Delaisheng indoor high-definition small-pitch LED display series, which uses high refresh C and SMD LEDs.

High-quality power supply, die-cast aluminum box and other key materials, dynamic scanning mode, the screen brightness can reach 800-2000nits, with high density, high definition, high grayscale, high efficiency (segment

It has the advantages of high contrast, high quality, unique appearance, safety, stability, reliability and quick response.

Indoor P1.25LED display product features:

Beautiful picture, ultra-high refresh

P1.25 display is seamlessly assembled, ultra-wide viewing angle, uniform brightness and chromaticity without color cast, broadcast-grade color gamut, moderate brightness, long-term viewing without fatigue, ultra-high refresh display and frame change speed

Fast, eliminate ghosting and no tailing, flexible and small display unit;

Modular wireless design, plug and play

P1.25 full-color LED display design the power supply and wire as a module, plug and play, and the speed is ten times faster than the traditional header and female connector. Simple, fast and reliable

Low brightness and high gray, more delicate picture

The P1.25 LED display uses high-quality black-faced LED lights, with a black mask, which has a higher contrast, making the picture clearer and brighter.

Easily implement FHD and 4K large screens

The P1.25 full-color display screen can be of any size, spliced ​​in any direction, point-to-point compatible with streaming video screens on the market, and easily realize FHD and 4K large screens

Multifunctional connector, fast, simple and convenient

Intelligent connector, which integrates connection and gap fine-tuning functions in one, everything is only for the convenience of customers.

Super quiet, zero noise, fast heat dissipation

P1.2LeD display v-Structure-new structure design concept, effective control of temperature rise, stable operation, DC low-voltage power supply, natural heat dissipation, no fan, zero working noise, high heat dissipation surface

Board processing technology has fast heat dissipation and longer life

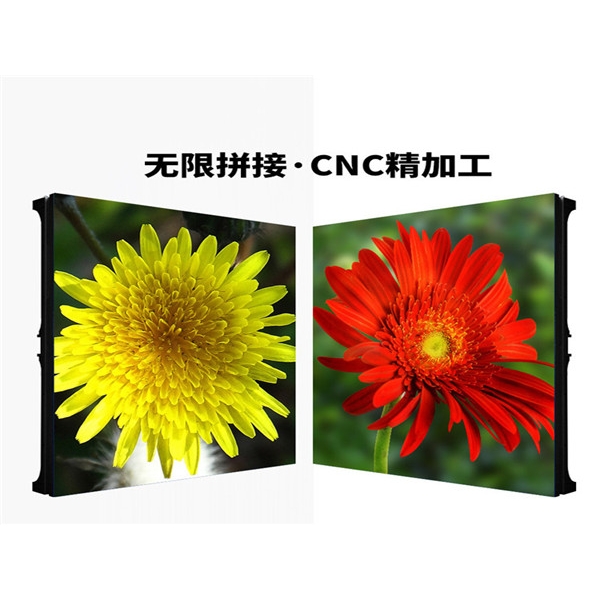

Seamless splicing installation, group the whole screen as you like

P1.2 display only supports quick installation and disassembly, installation time, and convenience

Double power backup is foolproof

P1.2 full-color LED display dual power supply, one power supply fails, the other signal automatically intervenes to ensure the normal operation of the display

160 degree viewing angle

The P1.2 full-color display has a large viewing angle of 160 degrees, which makes the viewing range of the display larger, and you can see a clear and high-quality display from any angle

Indoor P1.25 display product advantages

1. Ultra light and thin: single box 5.5kg, 60mm thick

2. P1.25 LED display ultra-high refresh rate: it can ensure that high-definition cameras and camcorders can capture high-definition and delicate display pictures when shooting

3. P1.25 full-color display low-brightness and high-gray performance: in the case of low brightness, the display gray level is uniform and the display consistency is good

4. Indoor P1.2 display high contrast ratio: mask design, black body SMD, non-reflective surface, large viewing angle, good display effect

5. High uniformity of brightness and color: high-quality selected light-emitting devices of the same batch are used to ensure high uniformity

6. Adopt advanced blanking scheme: completely eliminate dark and bright, ghost phenomenon

7. High reliability and long life: the design of in-line adapter board is adopted to simplify the wiring in the box, effectively reduce the problem of poor connection and reduce signal attenuation and interference, and high-quality light-emitting devices are guaranteed

Proof of high reliability and long life

8. The indoor P1.2 LED display is seamless and fast splicing, easy maintenance and maintenance: the lock structure makes the splicing operation simple and convenient without tools

9. No noise: silent design, no air conditioning, no fan installation, eliminate noise, reduce power consumption, save electricity and energy

10. Real-time error detection function: It can independently detect whether each LED screen is in an open circuit state without adding additional external components and can eliminate the problems such as crosses caused by this

11. Front maintenance structure: convenient for disassembly and maintenance

Indoor P1.25 full-color display use range

Indoor P1.25 display is suitable for military and public security, energy, urban management, public information release platform, traffic and transportation, radio and television, theater, enterprise video conference system, medical

Treatment/education, dispatch command center, control command center, surveillance security center, conference video center, weather information broadcast, medical information release, exhibition hall, educational presentation, movie

Fixed installation occasions in hospitals, TV studios and other fields.
